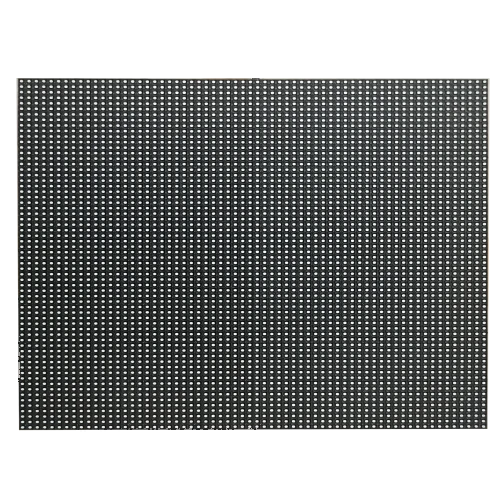

Siab Refresh 3840Hz P3.91 Led Module
High Refresh 3840Hz 250 * 250mm P3.91 rgb coj module
Hoobkas profile
HELILAI yog lub teb chaws high-tech enterprise, tsom rau kev tshawb fawb thiab kev tsim kho, tsim khoom thiab muag khoom ntawm LED series daim ntawv thov cov khoom, thiab cov tuam txhab daws teeb meem. Tam sim no, lub tuam txhab muaj: Shenzhen LED Industrial Park npog thaj tsam ntawm 68, 000 square metres (46, 000 square meters rau nqi xauj tsev thiab 22, 000 square meters rau tus kheej siv. ), thiab 42, 000 square meters ntawm Hunan Helilai Smart Display LED Production Base tau muab tso rau hauv kev siv.
Cov khoom tseem ceeb: ntse thiab kab lis kev cai muaj tswv yim LED zaub, siab txhais me me-pitch LED zaub, sab hauv tsev thiab sab nraum zoov puv xim LED zaub, LED pob tshab iav npo, ntse LED pem teb pobzeb scene screen, ntse induction LED sib tham sib screen.
Khoom Description
| 1 | LED hom | SMD1921 | ||||||
| 2 | Pixel suab (mm) | 3, 91mm | ||||||
| 3 | Pixel muaj pes tsawg leeg | 1 RGB | ||||||
| 1 | Module daws teeb meem (W * H) | 64*64 | ||||||
| 2 | Module loj (W * H) | (W) 250mm × (L) 250mm | ||||||
| 3 | Mark | Yog lawm | ||||||
| 4 | LED hom | Hongsheng | ||||||
| 5 | Tsav IC | ICN 2037/16380 IB | ||||||
| 6 | Pixel ceev | 65536 pixels / m² | ||||||
| 7 | Brightness | >4500cd / m² (adjustable) | ||||||
| 8 | Qib / ntsug kaum | 160 degree / 160 degree | ||||||
| 9 | Flatness | Ntau dua lossis sib npaug li 98% | ||||||
| 10 | Grey nplai | liab, ntsuab, xiav tag nrho ntau dua los yog sib npaug rau 12 ntsis | ||||||
| 11 | Scan hom | 1/16 scan | ||||||
| 12 | Refresh frame zaus | 60Hz / s | ||||||
| 13 | Refresh tus nqi | 1920-3840Hz/s | ||||||
| 14 | Max.power noj | 40W / pcs | ||||||
| 15 | Cov sijhawm ua haujlwm tas mus li | Ntau dua lossis sib npaug rau 7 × 24 teev, (nruam tso saib muaj) | ||||||
| 16 | MBTF | Ntau dua lossis sib npaug li 10000 teev | ||||||
| 17 | LED lub neej ntev | 100, 000 teev | ||||||
| 18 | Ua tsis tiav pixel tus nqi | Tsawg dua lossis sib npaug rau 0.0001 | ||||||
| 19 | Kev khiav hauj lwm Temp. | -10 degree -60 degree | ||||||
| 20 | Humidity Range | 10％-90％RH, Tsis yog condensing | ||||||
| 21 | Screen xim kub | 12000K (kho tau) | ||||||
| 22 | Brightness kho | Manually/Automatic/Program control | ||||||
| 23 | Kev kho | Brightness thiab chroma raug taw tes los ntawm taw tes | ||||||
| 24 | Tswj txoj kev | Synchronous / Asynchronous tswj | ||||||
| 25 | Qhia ua haujlwm voltage | AC: 110 / 220V, 50 ~ 60Hz / s | ||||||
Khoom nta
Cov khoom pov thawj
Cov khoom siv
Cov khoom lag luam nce qib
Cov khoom ntim
peb cov kev pabcuam thiab kev xa khoom
FAQ
Q: Qhov loj ntawm P3.91 sab nraum zoov coj module yog dab tsi?
Q: Dab tsi yog kev daws teeb meem ntawm P3.91 sab nraum zoov coj module
Q: Cov ntawv thov twg siv P3.91 sab nraum zoov coj zaub?
Q: Yuav ua li cas xaiv tus qauv zoo tshaj plaws ntawm LED zaub?
